Enya: Compact and powerful

The Enya AQUA is a true masterpiece by Robin Wood.

Its unique constellation ensures sustainable, efficient and economical heating with maximum comfort. With an efficiency of up to 94.87% and an energy efficiency class A++, the water-powered pellet stove burns the wood pellets in an environmentally friendly and clean manner.

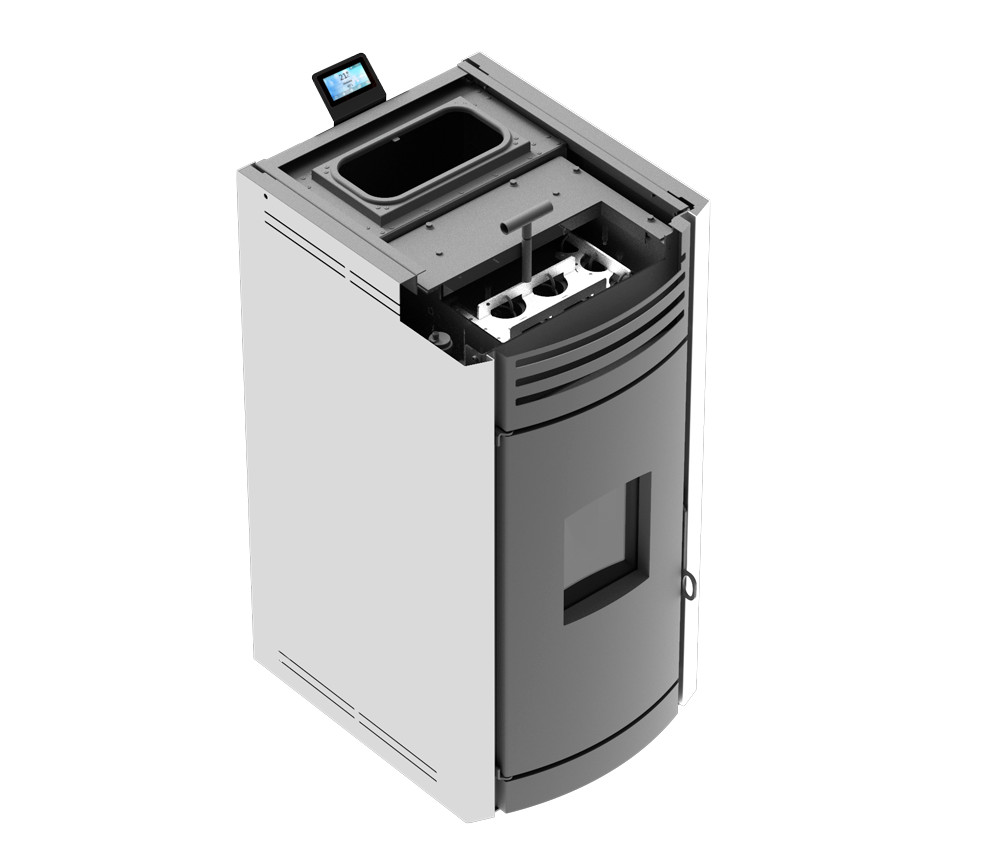

Equipped with the ROBIN WOOD EASY CLEAN burner cleaning system, the oven cleans itself after each use or at set intervals. The large ash pan ensures long intervals between manual emptying.

A sophisticated technical interaction between the Wilo high-efficiency pump, safety temperature limiter, expansion vessel, safety valve and system pressure sensor ensures quick installation in your heating system.

Thanks to self-regulating heat distribution, the living space is warmed appropriately without overheating the room (e.g. with the Enya Aqua 18; 1.98 kW heat output in the installation room and 16.15 kW) to the buffer storage.

The simple design language combines design with functionality. The oven always has a clean appearance.
Optionally, you can use the ROBIN WOOD SMART FIRE WiFi module and the associated app to access the pellet stove from your smartphone at any time and adapt it to your needs. With the help of the WLAN module, the pellet stove can also be controlled via the “Alexa” voice assistant.

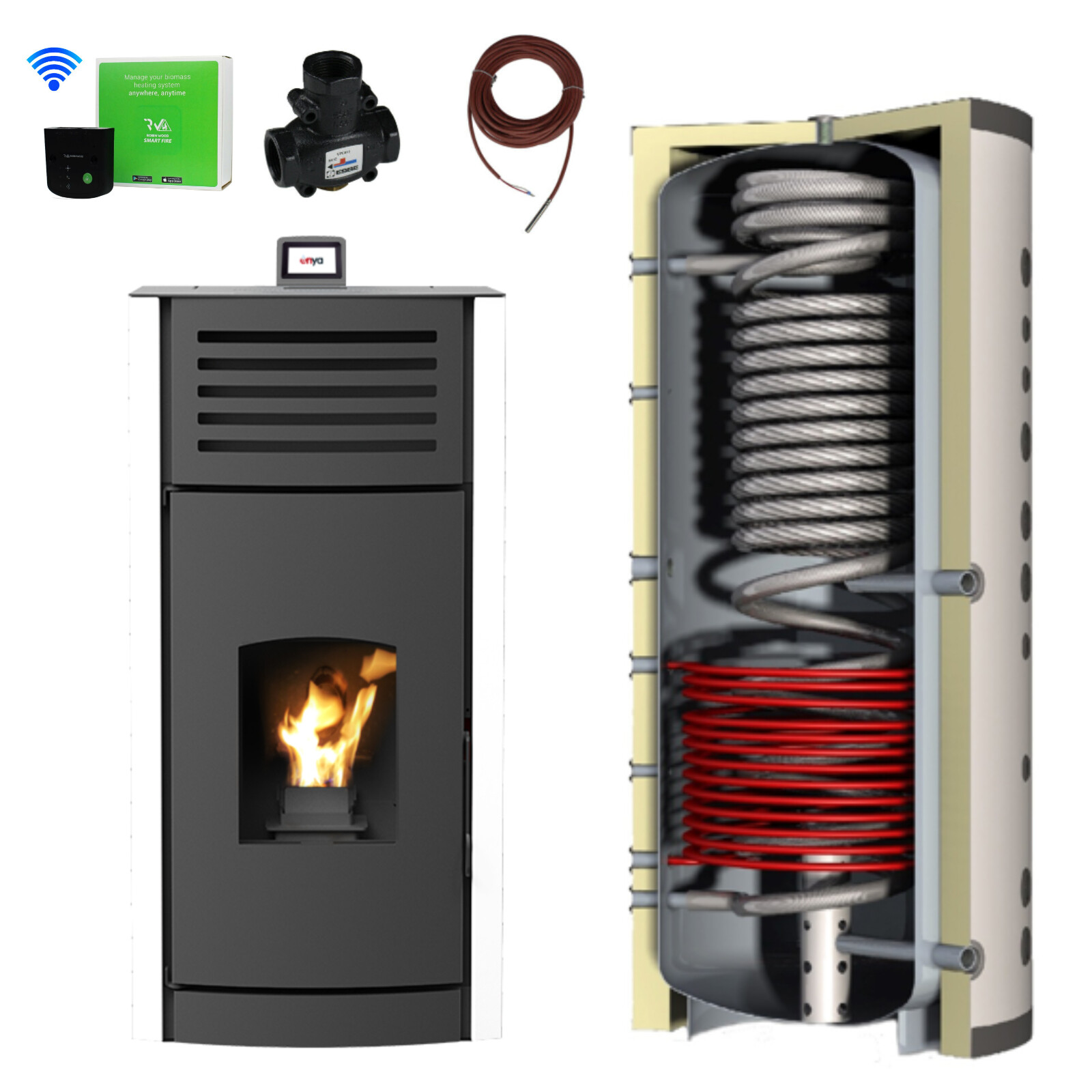

The accessory set contains: return increase, WiFi module and a buffer sensor.

Dimensions buffer tank:

600 liters:

▸ Storage height: 1900mm
▸ Diameter with thermal insulation: 750mm
▸ Diameter without thermal insulation: 600mm
▸ Tilting dimension: 2045mm
▸ Max. Permissible temperature (buffer & domestic water heat exchanger): 95°C
▸ Maximum operating temperature (additional heat exchanger): 110°C

✓ You can optionally choose between one or two additional heat exchangers with an area of ​​2.1m².

800 liters:

▸ Storage height: 1815mm
▸ Diameter with thermal insulation: 1020mm
▸ Diameter without thermal insulation: 760mm
▸ Tilting dimension: 2085mm
▸ Max. Permissible temperature (buffer & domestic water heat exchanger): 95°C
▸ Maximum operating temperature (additional heat exchanger): 110°C

✓ You can optionally choose between one or two additional heat exchangers with an area of ​​2.4m².

1000 liters:

▸ Storage height: 2065mm
▸ Diameter with thermal insulation: 1020mm
▸ Diameter without thermal insulation: 760mm
▸ Tilting dimension: 2305mm
▸ Max. Permissible temperature (buffer & domestic water heat exchanger): 95°C
▸ Maximum operating temperature (additional heat exchanger): 110°C

✓ You can optionally choose between one or two additional heat exchangers with an area of ​​3m².

Type of insulation material:

600 liters: Polyurethane rigid foam with 95% closed cells, CFC and HCFC-free, fire resistance class B2 according to din 4102-1.
800 & 1000 liters: 100% recyclable polyester fiber, fire resistance class B1 according to din 4102-1.

Technical data ENYA AQUA 18:

▸ Height H: 1127mm
▸ Width B: 584mm
▸ Depth T: 631mm
▸ Capacity of the pellet container: 30 kg
▸ Fresh air connection: Ø 60mm
▸ Smoke pipe connection: Ø 80mm
▸ Net weight: 175 kg
▸ Fuel type: Wood pellets Ø6 - Ø8
▸ Power connection: 230/50 V/Hz
▸ Water jacket capacity: 41 liters
▸ Operating pressure: 0.5 - 2.0 bar
▸ Possible ambient temperature in operation: 5 - 40°C
▸ Humidity at 30°C ambient temperature: 85%
▸ Max. Water temperature: 90°C
▸ Energy consumption: 14 W/h

✓ Test results at nominal heat output 18.13 kW.

▸ Power delivered to the environment: 1.98 kW
▸ Power delivered to the water: 16.15 kW
▸ Efficiency at nominal power: 94.04%
▸ Exhaust gas temperature: 86.70 °C
▸ Exhaust gas mass flow: 12.00 g/s
▸ Flue gas velocity: 1.70 m/s
▸ Chimney draft: 10.10 Pa

✓ Test results with reduced heat output 6.48 kW:

▸ Power delivered to the environment: 0.96 kW
▸ Power delivered to the water 5.52 kW
▸ Efficiency with reduced heat output 6.48 kW: 94.87%
▸ Exhaust gas temperature: 78.79 °C
▸ Flue gas velocity: 1.70 m/s
▸ Chimney draft: 9.60 Pa
